LPCB Certified TX7130 Reflective Optical Beam Smoke Detector – High-Sensitivity Fire Detection with Wide Coverage (Up to 1000㎡), Ideal for Open-Air Factories, Exhibition Halls & Logistics Centers

Merknaam:	TANDA
Modelnummer:	TX7130
Moq:	1
Prijs:	negotiable
Verpakking:	615431CM
Betalingsvoorwaarden:	T/T, Western Union,

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Document:

Voeding:

DC24V

Type:

Infraroodstraaldetector

Certificeringen:

Applicaiton:

conventionele/adresbare brandalarmsysteem

Detectortype:

Reflectieve rookmelder

Uitvoer:

Reële uitgang: 1A DC24V

Installatie:

Plafond of wandbevestiging

Transportpakket:

karton

Padlengte:

5100m

Vochtigheidsbereik:

0-95% niet-condenserend

Bedrijfstemperatuur:

-10 tot 50 graden Celsius.

Levering vermogen:

1000 STKS/MAAND

Productbeschrijving

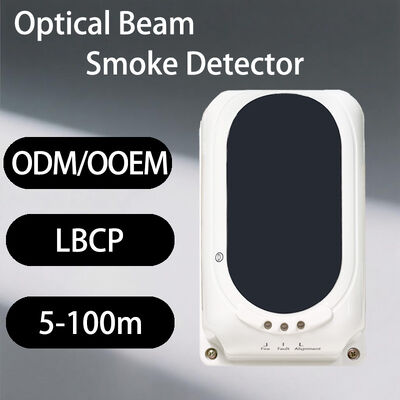

LPCB Certification TX7130 Reflective Optical Beam Smoke Detector For High-Performance Fire Detection

LPCB Certified TX7130 Reflective Optical Beam Smoke Detector – High-Sensitivity Fire Detection with Wide Coverage (Up to 1000㎡), Ideal for Open-Air Factories, Exhibition Halls & Logistics Centers 0

Introduction

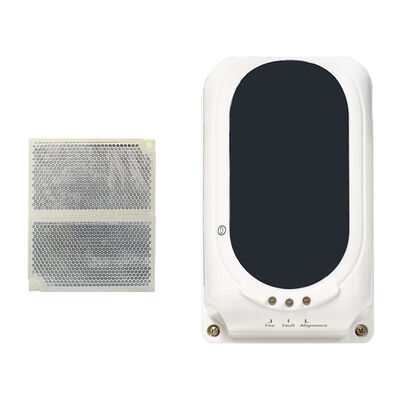

The TX7130 reflective optical beam smoke detector incorporates a light transmitter and the detector on the same unit. The light path is created by reflecting light emitted from the transmitter off a retro- reflector, meaning it is reflecting light back to its source with a minimum of scattering, which is placed opposite the detector.

In a fire, when smoke falls within the path of the beam detector, some of the light is absorbed or scattered by the smoke particles. This creates a decrease in the received signal, leading to an increase in optical obscuration. This unit decodes or analysts received signals and compare to the pre-programmed algorithm stored on the processor. Through this algorithm the detector will decide whether fire is defined or not and lead to enablement the corresponding relays and LED indicators. The unit on the operating mode maintaining continually emitting light, care should be taken that the activities in the space do not obstruct the beam or move the device to avoid false operation of the detector

Specifications

Operating Voltage 20 V to 28 V DC

Current Parameters Standby: 23mA Commission: 56mA Alarm: 33mA

Beam Sensor Sensitivity [via Encoder] Level 1: 2.6 dB High Sensitivity

Level 2: 3.8 dB Medium Sensitivity

Level 3: 5.8 dB Low Sensitivity

Beam Pathway Length [via Encoder] Span 1: 8 to 20 meters Limited Path

Span 2: 20 to 40 meters Short Path

Span 3: 40 to 70 meters Normal Path

Span 4: 70 to 100 meters Long Path

Beam Path Angle ±0.4º Directional (This data takes the average of the left and right deflection angles.)

Alignment Guide Laser Beam Pointer

Digital Display Guide Nixie Tube

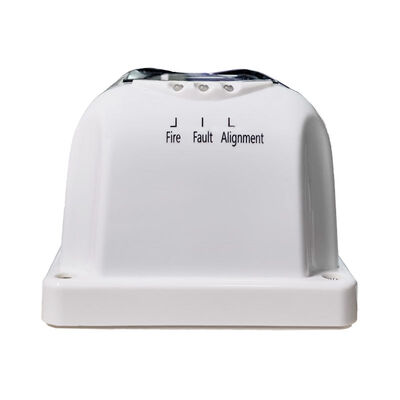

LED Indicator Guide Red: Fire ; Yellow: Fault ; Green: Alignment

Reset Time Less than 2 Second

Relay Capacity [Fire & Fault] Normally Open & Close/ 2.0 A; 30 VDC

Material / Colour ABS / White

Dimension / Weight L:190.87 x W:126.87 x H:91.96 mm / 440 gm

Weight 0.130 Kg with base

Operating Temperature -10°C to +50°C

Ingress Protection Rating IP30 [IP66 glue seal-For permanent fixing

Humidity 0 to 95% Relative Humidity, Non condensing

Product Range

Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector

Service

1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.
